제품 상세 정보:
|
| 제품 이름: | 핸디 AC 요크 | 모델: | HCDX-220S |
|---|---|---|---|
| 근무 시간: | 5분 착용, 1분 휴식 | 워킹 모드: | 프로브는 AC220V에 직접 연결될 수 있습니다. |
| 강조하다: | 핸디 AC 요크,흰색 램프 간편한 AC 요크,자외선 램프 간편한 AC 요크 |
||

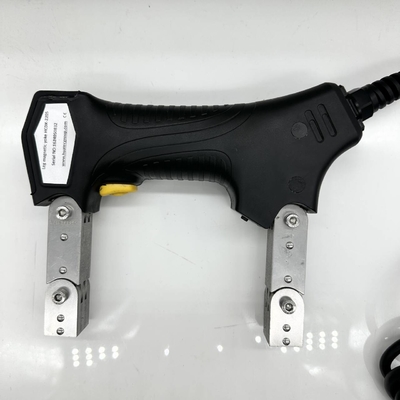

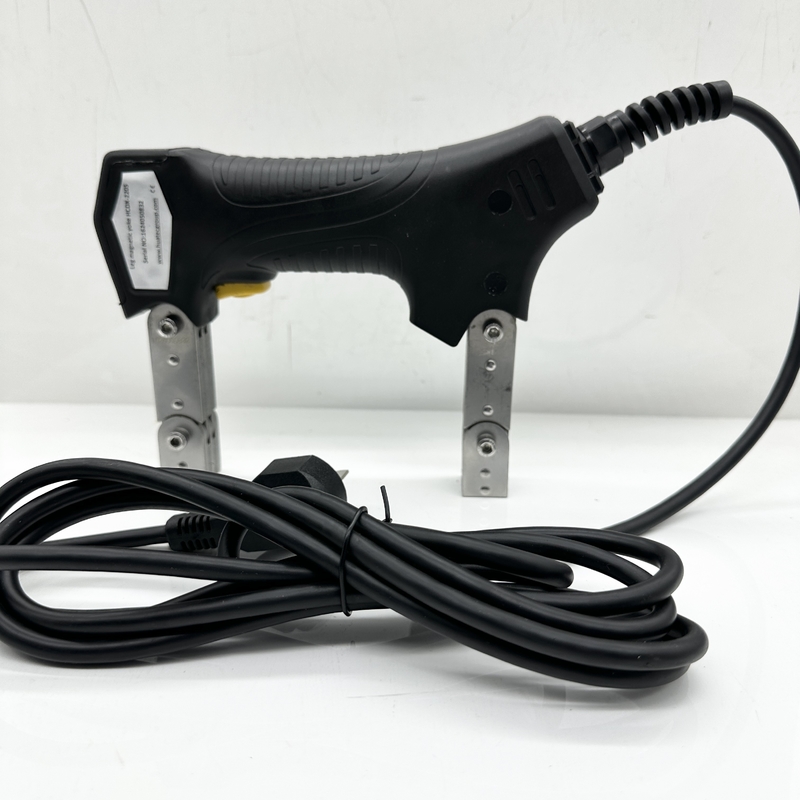

Handy AC Yoke With UV Lamp And White Lamp
Application
•Surface and subsurface testing for f ield testing
•Surface and subsurface for s pot inspections
•Surface and subsurface for i n service inspections
•Surface and subsurface for d emanding environments
•Surface and subsurface for w eld inspection
Functional characteristics
1. AC working mode, the probe can be directly connected to the AC220V power supply for flaw detection work;

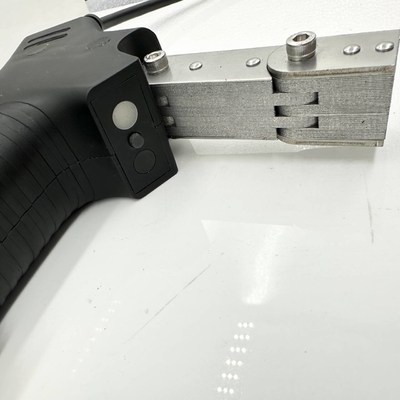

2. The lamp is automatically lit when magnetized, the UV and white light can be switched, and the fluorescent magnetic particle detection and
ordinary magnetic particle detection can be performed;
3, High sensitivity, strong lifting force, high flaw detection efficiency.
4. Duty time: 5 minutes on,1 minute off
5. Sealed, durable construction
| AC working mode | the probe can be directly connected to the AC220V |
| Duty time | 5 minutes on,1 minute off |
Standards conform
•ASME BPVC
•ASTM E709
•ASTM E1444
•ASTM E3024
•ISO 9934 3
Technical parameter
1. Sensitivity: A1 type standard test film 15/100 grooves display clearly,better than the national standard;
2. Lifting force: AC ≥68.6N (7kg);
3. Probe pole distance: 60mm
205mm (spacing range is adjustable);
4. Probe light source: white light illuminance ≥2000Lux; Uv lamp irradiance ≥5000μw/c ㎡
5. Probe volume: 200mm*48mm*158mm;
6. Probe weight: 2.0kg

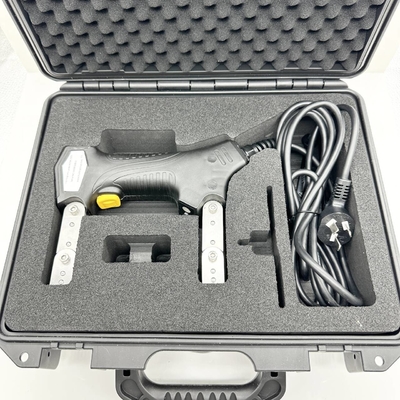

Configuration list
1. D type yoke 1 set (including 3 meters probe line)
2. 1 set of auxiliary tools
3. User manual, warranty card, certificate of 1
4. Instrument box
