제품 상세 정보:
|
| UV-FLUX: | ＞8000uW/cm² | Wavelength: | 366.5nm（UVA） |
|---|---|---|---|
| UV-B/UV-C: | No | FLUX Deviation: | 0-40℃ ±10％ |
| 하이 라이트: | Black Light Lamp For Flaw Detection,Flaw Detection Black Light Lamp,DG-9W Black Light Lamp |
||

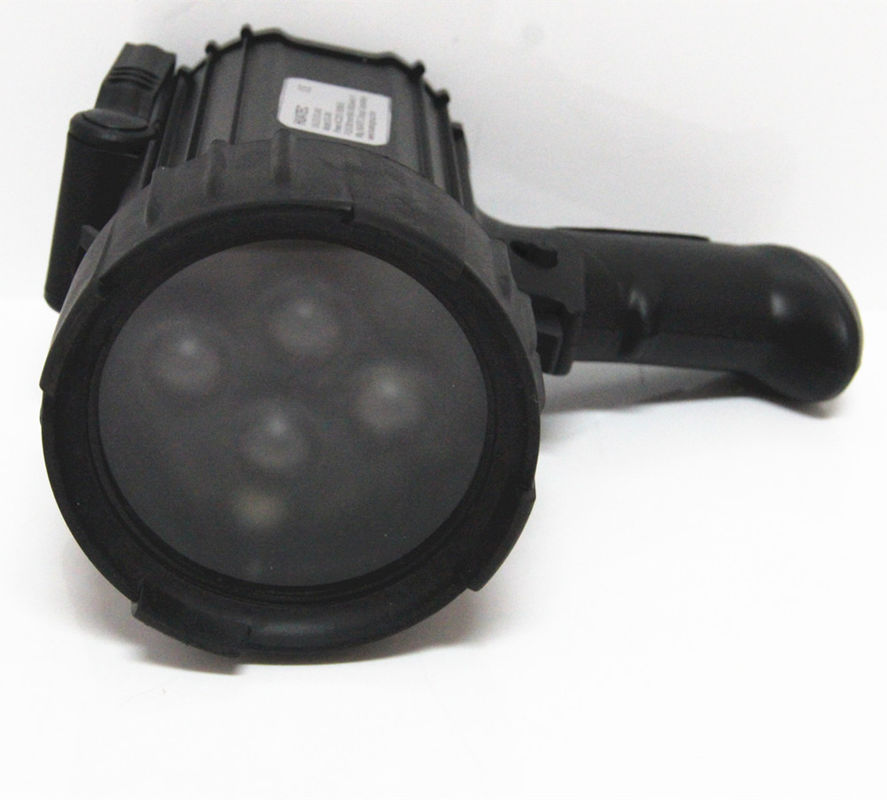

BLACK LIGHT LAMP FOR FLAW DETECTION DG-9W
INTERNATIONAL STANDARD ASTM E3022.
| Item parameters | Modes |
| Formal | Handheld |
|
UV (Light) -FLUX Calibration at room temperature 25 380mm |
8000uW/cm - Light-MAX1500LUX |
| FLUX Error | 0-40℃ ±10％ |
| 380mm area (more than 1000uw/cm | about 220mm in diameter, center source |
| Light Distribution Characteristics | Center light distribution |
| Power Supply | AC100-240V 50/60Hz |
| Power | UV LED-9VA Light-3VA |
| Wavelength | Room temperature 25 3nm 365nm (UVA) |
| Outline Size | 203mm(W)*110mm(D)*220mm(H) |
| Weight | 1Kg |
| Battery Capacity | 5800mA/H 12.6V |
| Charging Time | 4-5H |
| White light in black light | >30LUX |
| Battery Life (cumulative time) | UV LED 5-6H or Light 16H |
| Lamp life | 20000H |
