제품 상세 정보:
|
| 측정 범위: | 0~200um / 0~8mil | 해결: | 0.1 음 |
|---|---|---|---|
| 최소 반경 작업물: | 볼록 2mm / 오목 4mm | 최소 측정 면적: | 2 mm |
| 최소 샘플 두께: | 0.1 mm | 정확성: | ± 1~3%n 또는 ± 2.5um |
| 운영 조건: | 온도 0~40°C, 습도: 10~90%RH | ||
| 강조하다: | Eddy current thickness meter for coatings,High accuracy anodizing thickness tester,Paint enamel coating thickness gauge |
||

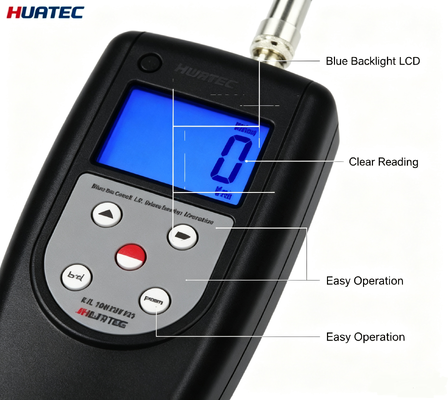

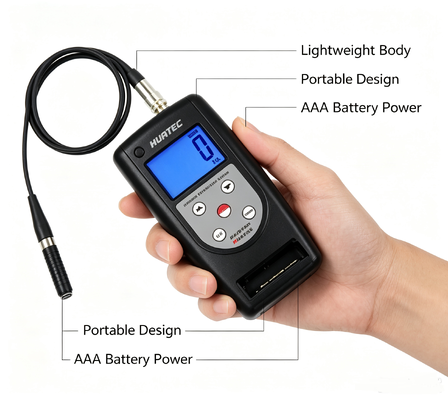

TG-2200CN High Accuracy Eddy Current Thickness Meter Single Continuous Mode for Anodizing Paint Enamel Coating Test Applications: The TG-2200CN measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc. Operating Principle Eddy Current (NF) Measuring Range 0~200 um / 0~8 mil Resolution 0.1 um Min. Radius Workpiece convex 2
