제품 상세 정보:
|
| 재료: | 스테인리스 스틸에 니켈 층을 가리고 단단한 크롬 합금 | 거칠성: | R = 2.5μm, 5μm, 10μm 및 15μm |
|---|---|---|---|
| 용인: | ±10% | 테스트 표준: | GB/T188513, ISO 3452-3 및 JIS Z 2343-3:2001 표준 |
| 5개의 별 모양의 범위에 있는 결함: | 30.0~5.5mm | ||
| 강조하다: | NDT PT Type II reference test block,penetrant system calibration roughness patches,2.5-15μm roughness test block |
||

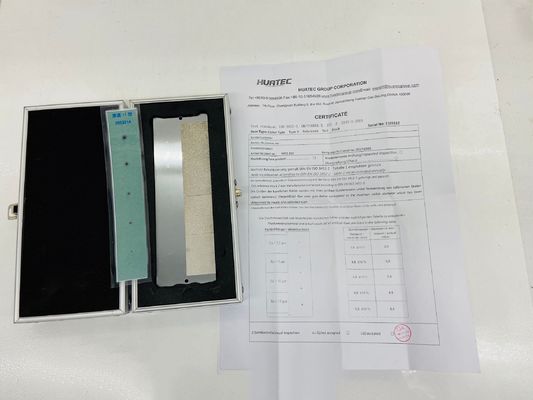

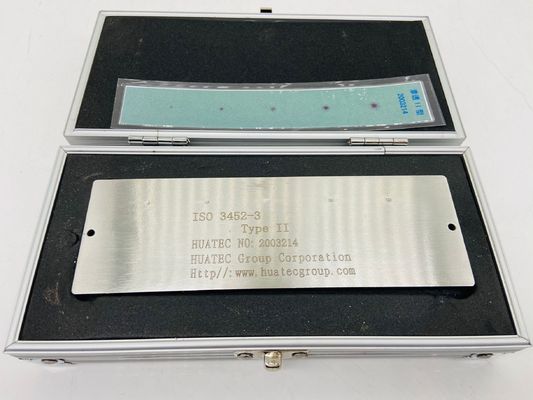

NDT PT Type II Reference Test Block 2.5-15μm Roughness Patches for Penetrant System Calibration ISO 3452-3: 2013 describes two types of reference blocks - Type 2 reference blocks are for routine assessment of DPI system performance. Reference block type 2 is made from stainless steel plated with a layer of nickel then a hard Chromium alloy. Five star-shaped defects of ranging from 3.0 to 5.5mm diameters have then been artificially produced in this layer with the five defects
담당자: Ms. Shifen Yuan
전화 번호: 8610 82921131,8618610328618
팩스: 86-10-82916893
