| 연삭 및 연마 디스크 메인 모터: | 1KW * 2 | 제어 방법: | 터치 스크린 + PLC |
|---|---|---|---|
| 연삭 디스크 직경 (mm): | Ø254(옵션 Ø20 0, Ø230, Ø30 0) |

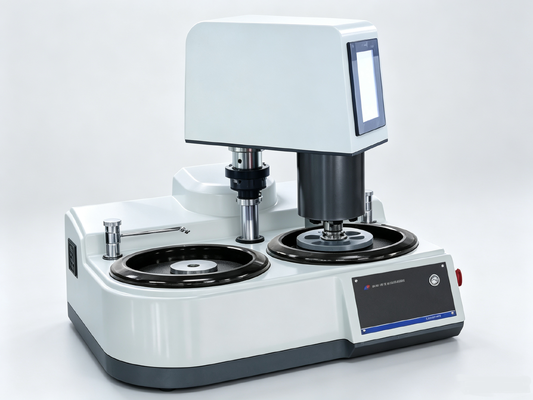

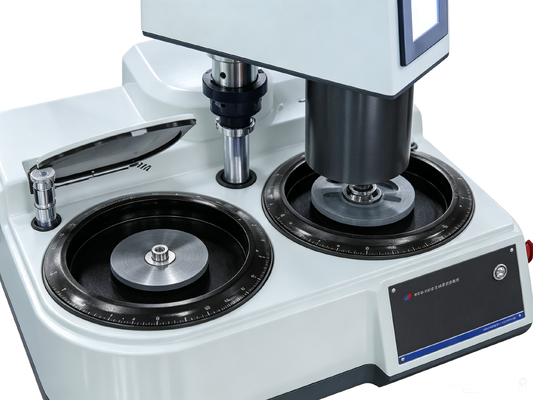

HPA-2000S fully automatic metallographic grinding and polishing machine simultaneously supports: Holds six samples at a time and can be equipped with a four-channel automatic dispensing device (optional) to complete the grinding and polishing process in a fully automated manner.HPA-2000S (Multi-point pressure & center pressure) Fully automatic metallographic grinding and polishing machine
Product Introduction
Features
Technical Parameters
Parameter
Specification
Model
HPA-2000S
Grinding and polishing disc
2
Grinding and polishing disc main motor
1KW × 2
Control method
Touch screen + PLC
Pressurization method
Pneumatic multi-point pressurization (individual pressurization for each sample) + Electric central pressurization
Grinding disc diameter (mm)
φ254 (optional φ200, φ230, φ300)
Grinding and polishing disc speed
5-1000 (r/min) with optional 1500 (r/min)
Direction of rotation of the polishing disc
Choose between counter-clockwise or clockwise, with automatic switching between forward and reverse
Sample disk diameter
160mm, customizable
Sample tray sample aperture
φ30mm six-hole (optional: φ30mm eight-hole, φ30mm six-hole, φ20mm six-hole, φ40mm six-hole, φ50mm three-hole, or custom-made)
Central pressure
10-200N
Single sample pressure
(1-40N) × 6, (1-60N) × 8 (optional)
Sample disk rotation speed
The steering can be switched between forward and reverse at speeds of 30-200 RPM
Manual mode
You can select 30 sets of parameters, each set can be set and invoked separately
Automatic mode
99 sets of processes (flows), each set of processes contains 10 steps of process parameters (automatically from process 1 to process 10, each step corresponds to a set of parameters)
User Programming
Users can program and call
Sample grinding thickness control
Thickness control accuracy 0.05 mm (optional)
Gas source pressure
0.6MPa
Grinding head locking method
Electromagnetic Automatic
Dripper
1-channel, 4-channel, and 6-channel (optional) controllable by a polishing machine
Power supply
Voltage: AC220V; Frequency: 50Hz; Power: 2KW
External dimensions (mm)
760 × 730 × 700
Weight
74 kg
Main Attachments
Name
Quantity (Double plate)
Name
Quantity (Double plate)
Magnetic disk (254mm)
2
Anti-stick tray
2
Adhesive-backed sandpaper, 254mm (or 250mm), 180#, 600#, 1000#
2 of each
Polishing cloth (with adhesive, 250mm) Velvet, canvas
1 each
Diamond suspension grinding and polishing fluid 1 micrometer, 6 micrometer, 200 ml
1 bottle each
Anti-stick plate pry bar (used for placing and prying up the anti-stick plate)
1
Product instruction manual, product certificate
2 copies
Additional Accessories
Product
Description
MAGNOMET
Anti-stick trays 5 pieces/box, diameter: Φ250mm. The surface features a special non-stick coating, allowing you to attach adhesive-backed sandpaper or polishing cloths to the tray for easy replacement without leaving any residue. It is reusable. This disk is used directly on the magnetic disks of BUEHLER or STRUERS; Replacement for Buehler's MagnoMet and MagnoPad
G SC 250A
Metallographic sandpaper 100 sheets/pack. Abrasive: Black silicon carbide. Particle size designations: P80#, 120#, 180#, 320#, 600#, 800#, 1000#, 1200#, 1500#, 2000#. Size: Φ250 mm water resistant. With adhesive backing, the sandpaper can be directly fixed to the grinding wheel.
FT250A
Metallographic polishing fabric 10 pieces/pack. Velvet (long pile) / Canvas (short pile) / Woolen fabric (short pile) / Silk (no pile) Φ250 mm. Adhesive backing: The fabric can be directly fixed to the grinding disc.
DSU
Diamond suspension polishing slurry 500 ml / bottle. Diamonds are suspended in a liquid and evenly distributed through a spray bottle or automatic dripping. Particle size: 0.25, 0.5, 1, 1.5, 2.5, 3, 3.5, 5, 6, 7, 9, 10, 14, 15, 20, 28, 40 micrometers, suitable for various materials.
