제품 상세 정보:
|
| 환산척: | 피상적 인 로크웰, 브리넬, 비커스 | 체류 시간: | 2-60초 |
|---|---|---|---|
| 록웰의 총 하중: | 60kgf(588N) 100kgf(980N) 150kgf(1471N) | 강도 측정 정확도: | 0.1HR |
| 샘플의 최대 높이: | 220mm | 외벽에 대한 인덴터의 거리: | 160mm |
| 데이터 출력: | 프린터 내부, RS-232 | 경도 값 이라는 암시: | 큰 LCD 스크린 디스플레이 |
| 강조하다: | Rockwell hardness tester with built-in printer,Multifunctional metal hardness tester RS232 output,High accuracy industrial hardness tester |
||

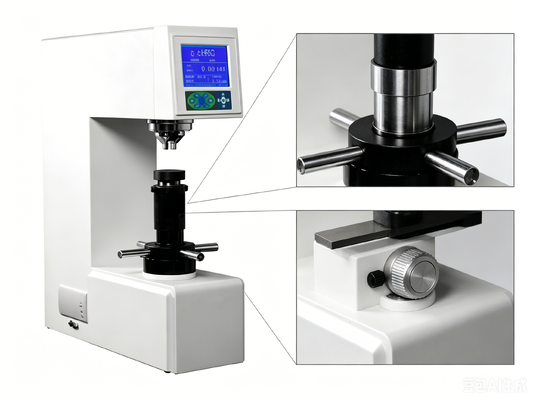

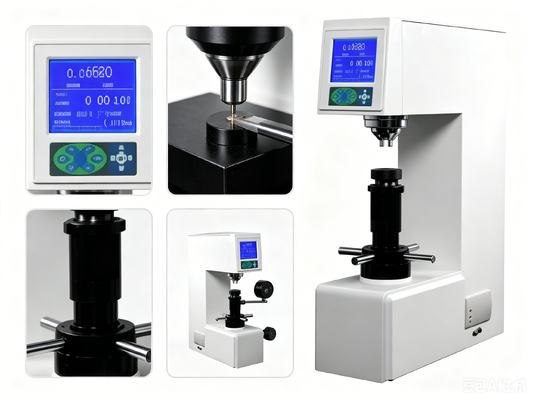

HR-150D DMultifunctional High Accuracy Rockwell Hardness Tester Automatic Data Conversion Built-in Printer RS232 Output Industrial Metal Hardness Tester
HR-150D Digital Rockwell hardness tester is equipped big screen LCD monitor. Operation panel use the menu type structure, the main functions are: Rockwell hardness of the scale choice, the choice of plastic Rockwell ruler, various guide the conversion between hardness, hardness testing results automatically save and RS-232 super terminal Settings, hardness value error can be modified HRough software input, hardness value more accurately meet test requirement.
Technical Specifications:
|
HR-150D |
|
|
Conversion Scale |
Superficial Rockwell, Brinell, Vickers |
|
Indication of Hardness Value |
Large LCD screen display |
|
Data output |
Inside Printer, RS-232 |
|
Duration time |
2-60s |
|
Carried Standard |
GB/T230.2 Chinese Standard, JJG112 Inspection Rule |
|
Preliminary Testing force |
10kgf(98.07N) |
|
Testing force |
60kgf(588N) 100kgf(980N) 150kgf(1471N) |
|
Rockwell Scale |
|
|
Hardness measuring range |
HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 |
|
Max Height of Specimen |
220mm |
|
160mm |
|
|
Power supply |
AC220V+5%,50-60Hz |
|
520*240*720 |
|
|
Net weight |
About 65Kg |
Application Fields:
Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.
Standard Accessories:
|
Name |
Quantity |
Name |
Quantity |
|
Diamond Rockwell Indenter |
1 |
1.5875mm Ball Indenter |
1 |
|
Hardness block (HRC High Low 2, HRB 1) |
3 |
Large, Medium, “V” shaped Testing Table |
1 each |
|
Weights(A,B,C) |
1 each |
Plastic Dustproof cover |
1 |
|
Operation Manual |
1 |
Product certificate |
1 |
Optional Accessories:
Data processing software CD 1pc
USB cable 1pc
