제품 상세 정보:
|
| 파장 범위 및 피크 파장: | (1) UV254 검출기: λ: 230-290nm; λp=254nm (2)UV297 검출기: λ: 250-350nm; λp=297nm (3)UV310 검출기: λ: 255-365n | UV 광 영역 너머의 미광: | UV254 :< 0.2% UV297 :< 1% UV310 :< 1% UV365 :< 0.02% |
|---|---|---|---|
| 테스트 범위: | 1μW/cm2--999.9×103μW/cm2 | 테스트 정확도: | ±5% |
| 디스플레이 업데이트 속도: | 1회／초 | 힘이 잃다: | <20mW |
| 강조하다: | UV radiometer multiple wavelength probes,compact UV irradiance measuring instrument,UV lamp stray light detector |
||

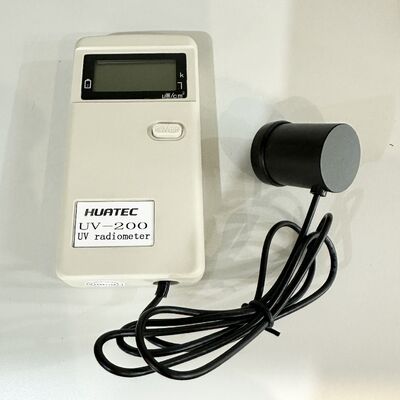

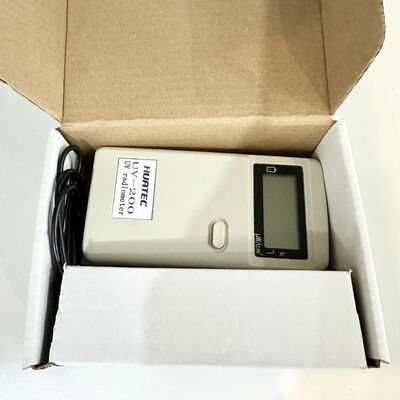

UV-200 Compact UV Radiometer Multiple Wavelength Probes Low Stray Light 9V Battery Powered UV Lamp Irradiance Measuring Instrument
This instrument is designed to measure UV irradiance. And meets the requirements of various national and international standards. It has been applied to medical service, sanitation, plant cultivation and sterilization generally, etc. Users can choose different wave band detectors in accordance to actual request to realize different testing demands radiation safety.
| Wave length range and peak wave length (Spectral responding curve) |
(2)UV297 detector: λ: 250-350nm; λp=297nm (3)UV310 detector: λ: 255-365nm; λp=310nm (4)UV365 detector: λ: 320-400nm; λp=365nm |
| Stray light beyond UV light area |
UV254 :< 0.2% UV297 :< 1% UV310 :< 1% UV365 :< 0.02% |
| Test range | 1μW/cm2--999.9×103μW/cm2 |
| Test accuracy | ±5% |
| Display update rate | 1 time／s |
| Power supply | 9V lamination battery |
| Power lose | ＜20mW |
| Working environmental condition | Temperature: 0~40℃. Humidity: ＜90％ |
