| 프로드: | 5 밀리미터와 8 밀리미터 탐침 | 범위: | 0~2.0mm |
|---|---|---|---|
| 표시하다: | 가속도, 속도 또는 변위를 위한 3 1/2자리 디스플레이 | 온도: 작동: | 0oC ~ 50oC |
| 강조하다: | HUATEC HG-5020i vibration meter,vibration measuring instrument with warranty,non-destructive testing vibration analyzer |
||

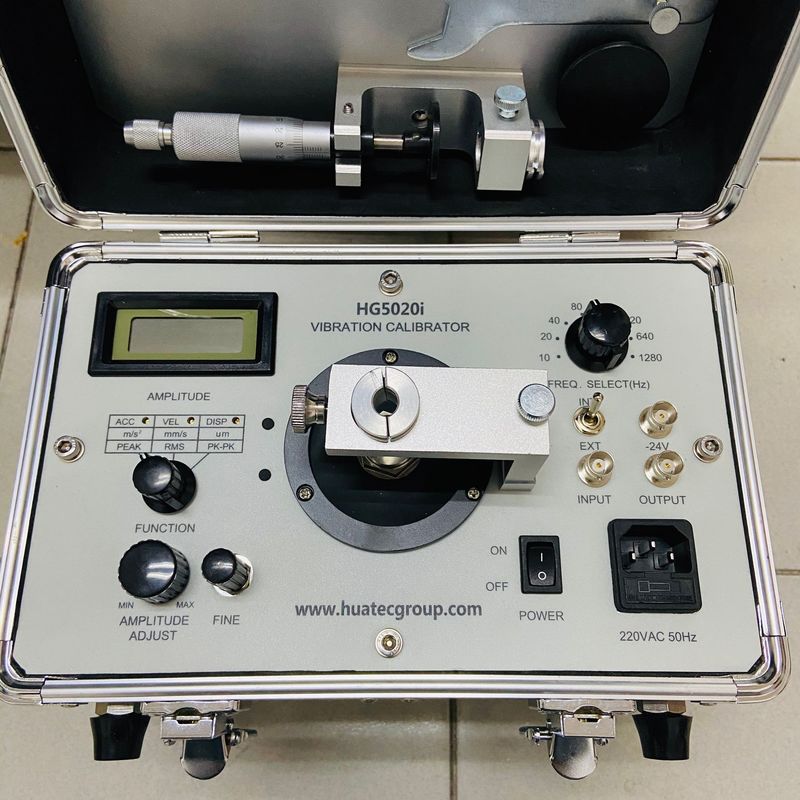

Can be used to calibrate vibration accelerometer, velocity and proximity transducer and also a vibration measuring instruments. Standard sine signals at frequency 10, 20, 40, 80, 160, 320, 640 and 1280 Hz can be generated from the calibrator. It also has a socket for input from an external signal generator for any vibration frequency and even sweep signal. The amplitude of the, acceleration, velocity and displacement, can be defined through potentiometers and shown on digital displays. Either horizontal or vertical vibration can be generated.
HG-5020i combines sine signal generator, power amplifier, standard transducer and a shaker in one and features a small volume, high accuracy and easy operation. It can be used either in laboratory or on site.
| Wt Freq |
<100g | <250g | <650g | ||||||
|---|---|---|---|---|---|---|---|---|---|
| a(m/S2) | v(mm/S) | d(μm) | a(m/S2) | v(mm/S) | d(μm) | a(m/S2) | v(mm/S) | d(μm) | |
| 10Hz | 2.5 | 28 | 1300 | 3.5 | 40 | 1800 | 4 | 45 | 2000 |
| 20Hz | 15 | 85 | 1900 | 10 | 60 | 1300 | 5 | 28 | 640 |
| 40Hz | 60 | 170 | 2000 | 35 | 100 | 1100 | 12 | 35 | 380 |
| 80Hz | 100 | 141 | 800 | 40 | 60 | 320 | 14 | 20 | 110 |
| 160Hz | 75 | 53 | 150 | 35 | 25 | 70 | 12 | 8.5 | 24 |
| 320Hz | 50 | 18 | 25 | 30 | 10 | 15 | 10 | 3.5 | 5 |
| 640Hz | 30 | 5 | 3 | 20 | 3.5 | 2 | 6 | 1 | * |
| 1280Hz | 23 | 2 | * | 10 | 0.9 | * | 5 | 0.4 | * |
Size: 280 x 180 x 250(mm) Gross Weight: 10 kg
Temperature: Operation: 0oC to 50 oC Storage: -20 oC to 70 oC
Power: 220Vac (optional 110Vac)
Frequency: Fixed 10, 20, 40, 80, 160, 320, 640, 1280Hz and external input for any signal with continuous frequency adjustment, sweep, non-sine
Amplitude accuracy:
Proximity probe linearity
Prode: 5mm and 8mm probes Range: 0~2.0mm
Display: 3 1/2 digit display for acceleration, velocity or displacement
