| 온도: 작동: | 0oC ~ 50oC | 저장: | -20 oC ~ 70 oC |
|---|---|---|---|
| 힘: | 220Vac(110Vac 옵션) | 조사: | 5mm, 8mm 및 11mm 프로브 |
| 탐침 사이즈: | 5mm, 8mm 및 11mm 프로브 |

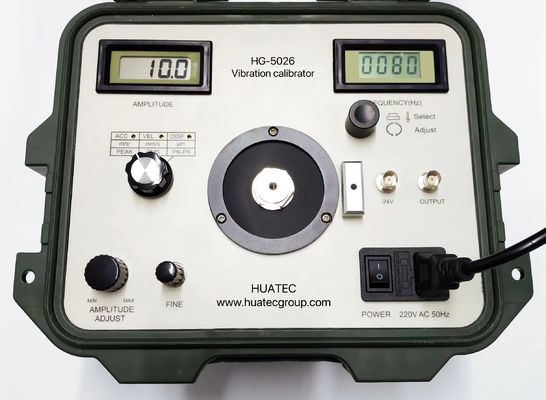

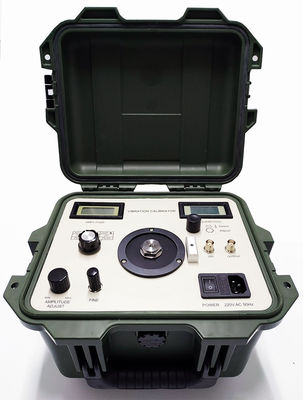

The HG-5026 battery powered vibration calibrator is designed for calibrating vibration accelerometers, velocity and proximity transducers, and vibration measuring instruments. It generates standard sine signal vibration at frequencies from 1 to 1280 Hz, with amplitude of acceleration, velocity, and displacement defined through potentiometers and displayed on digital screens.
This versatile instrument can generate both horizontal and vertical vibration, combining sine signal generator, power amplifier, standard transducer, vibration meter, and shaker in one compact unit. Featuring small volume, high accuracy, and easy operation, it is suitable for both laboratory and field applications.
| Frequency | < 100g | < 250g | < 500g | ||||||
|---|---|---|---|---|---|---|---|---|---|
| a(m/S²) | v(mm/S) | d(μm) | a(m/S²) | v(mm/S) | d(μm) | a(m/S²) | v(mm/S) | d(μm) | |
| 10Hz | 2.5 | 28 | 1300 | 3.5 | 40 | 1800 | 4 | 45 | 2000 |
| 20Hz | 15 | 85 | 1900 | 10 | 60 | 1300 | 5 | 28 | 640 |
| 40Hz | 60 | 170 | 2000 | 35 | 100 | 1100 | 12 | 35 | 380 |
| 80Hz | 100 | 141 | 800 | 40 | 60 | 320 | 14 | 20 | 110 |
| 160Hz | 75 | 53 | 150 | 35 | 25 | 70 | 12 | 8.5 | 24 |
| 320Hz | 50 | 18 | 25 | 30 | 10 | 15 | 10 | 3.5 | 5 |
| 640Hz | 30 | 5 | 3 | 20 | 3.5 | 2 | 6 | 1 | * |
| 1280Hz | 23 | 2 | * | 10 | 0.9 | * | 5 | 0.4 | * |
Frequency Range: 1 to 1280 Hz ≤±0.01%
Amplitude Accuracy:
Proximity Probe Linearity Calibration Kits:
Weight of Velocity Probe: <650g
Display: 3½ digit display for vibration and frequency
Dimensions: 300 × 250 × 210 mm
Net Weight: 6 kg
Temperature Range:
Power Supply: 220Vac (optional 110Vac)
