HMTD Mobile Magnetic Flux Leakage Detector Compact Drill Pipe Corrosion Crack NDT Testing System

1  General introduction

If the drill pipe is not tested before use, the damage degree cannot be grasped, and the quality cannot be guaranteed. It may cause puncture, fracture, and other accidents during the drilling process, which will bring huge economic losses to drilling production. Drill pipe non-destructive testing technology is a practical and effective method to detect drill pipe defects. It can detect and control drill pipe corrosion defects in a timely manner. Strengthen the non-destructive testing of downhole drill pipes used in oil fields in my country, which can improve the reliability of downhole drill pipe use and reduce Drilling engineering costs are an important way to improve economic efficiency and promote the development of my country’s petroleum strategy.

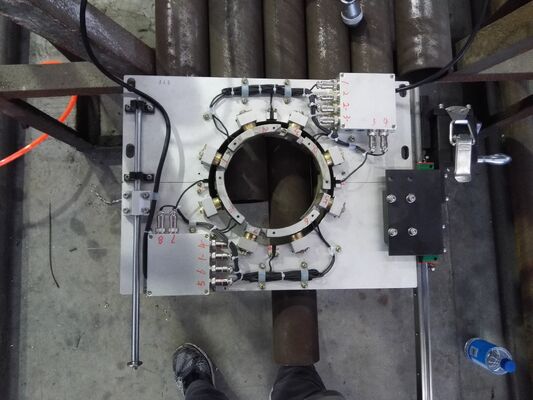

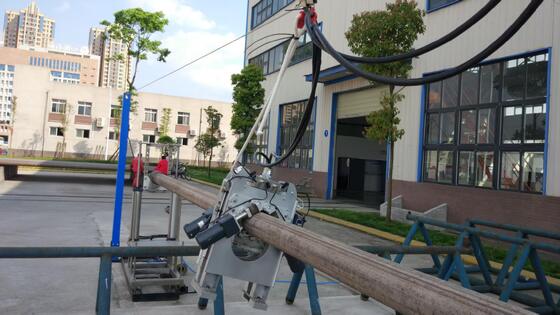

 A mobile field drill pipe micro-blind area detection system is used to detect the micro-blind area of drill pipes of different specifications, to monitor the quality and safety of the drill pipe. The system consists of a probe instrument, a probe drive device, a drill pipe lifting trolley, a power supply box, a computer, and a capture card. The on-site drill pipe inspection process is as follows: After the drill pipe enters the inspection area, the walking lift cart puts the probe instrument on the drill pipe inspection rod body, lifts the drill rod, and the probe instrument automatically scans along the drill rod under the drive of the probe driving device for flaw detection The drill pipe flaw detection status is transmitted to the computer through the signal line and analyzed by the analysis and processing software to form a test report. After the flaw detection is completed, the trolley descends, the drill pipe is lowered, and the trolley moves back to allow the probe to slide away from the drill pipe. Detected area. Its characteristics are compact structure, small size, light weight, easy to move and assemble, small space for detection, can be used both inside and outside the factory, simple and standardized detection process, fast detection speed, and small detection blind area. It not only has the speed and efficiency of large-scale fixed testing equipment, but also has the mobility and flexibility of small-scale testing equipment such as ultrasound. It solves the problems of large detection blind areas of the current drill pipe detection equipment, large equipment volume, high price, difficult maintenance, difficult to move and assemble, large space when used, and the need for special workshops, large detection blind areas, and heavy labor intensity. The problem of waiting to fill the gap in the country

2.System composition

The flaw detection system is mainly composed of three parts: a mobile detection probe, a mobile console, and a computer signal processing system

3.The principle of system detection

Magnetic flux leakage detection method is currently recognized as the most reliable detection method for tubular ferromagnetic materials. Its main characteristics are fast detection speed, good detection effect, simple operation, strong anti-interference, and pollution ability, and it has been obtained in the defect detection of various magnetic conductive components It has a wide range of applications.

The system uses the principle of magnetic flux leakage detection (MFL) to detect defects (cracks, holes, wear, etc.) in drill pipes. The basic principle of Mfl method detection is based on the high permeability of ferromagnetic materials. The detection principle is shown in Figure (1) below. The permeability of the drill pipe at the defect caused by corrosion or external force is much smaller than that of the drill pipe. It is magnetized under the action of an external magnetic field. When there is no defect in the drill pipe, most of the magnetic flux (abstracted as magnetic field lines) passes through Drill pipe, at this time, the magnetic flux (abstracted as magnetic field lines) is evenly distributed. When there is a defect in the drill pipe, the magnetic flux (magnetic field lines) bends and a part of the magnetic flux (magnetic field) leaks out of the surface of the drill pipe. Magnetic sensitive components are used to detect. The distortion of these magnetic fields can obtain information about defects in magnetically conductive components such as pipe rods.
