| 제품명: | X- 선 필름 개발자 프로세서 | 사용: | 산업용 X선 검사 필름(RT)은 처리가 완전히 자동화되어 노출된 잠상을 선명하고 가시적인 이미지로 변환합니다. |
|---|---|---|---|
| 기능: | 용접 X선 필름 현상기 | 키워드: | X- 선 필름 개발자 프로세서 |
| 강조하다: | X-ray film developer processor,Non-destructive testing film processor,HDL-P17A X-ray developer machine |
||

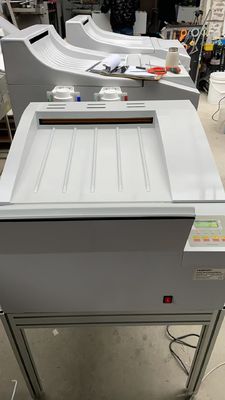

HUATEC HDL-P17A X-ray Film Developer Processor
HDL-P17A NDT is the two high market, economical and practical industrial flushing machine. It washes the width and speed of high quality, good reliability and various specifications. It is widely used in the construction of boiler, shipbuilding, pressure vessel, petroleum and natural gas pipeline, and the quality inspection of various kinds of dynamic and pressure equipment. Praised by the clients of the testing industry.
| Model | HDL-P17A |
| Film specification |
Minimum 10*10cm maximum 45*∞cm |
| Flushing time | 90-360sec |
| Developing time | 20-60sec |
| Flushing volume | 140pieces / hours(14"*17")210 pieces / hours(11"*14") |
| Drug tank capacity | Developing, fixing, and washing each 8L |
| Developer temperature | 20℃-40 ℃adjustable (interval 0.1℃) |
| Drying temperature | 40℃-65 ℃(automatic regulation) |
| Film induction | Imported microswitch |
| Volume cm³ | 79*69*42 |
| weight | Gross weight 60kg (net weight 55kg) |
| Anti crystallization and anti oxidation | 45 minutes / times |
| Flushing process | Development→Fixed shadow→washing→Dry |
| Supplement | According to the area of film flushing, automatic water replenishment is provided, and manual replenishment is also provided. The amount of water replenishment is 20-200ml/0.3m2 |
| Water washing control | When the film is flush, it will automatically water for 2-8L/ minutes, and automatically shut down when standby. |
| Power consumption |
220V 50/60Hz 8.8A (flushing 2KW, standby 120W) |
Outstanding features:

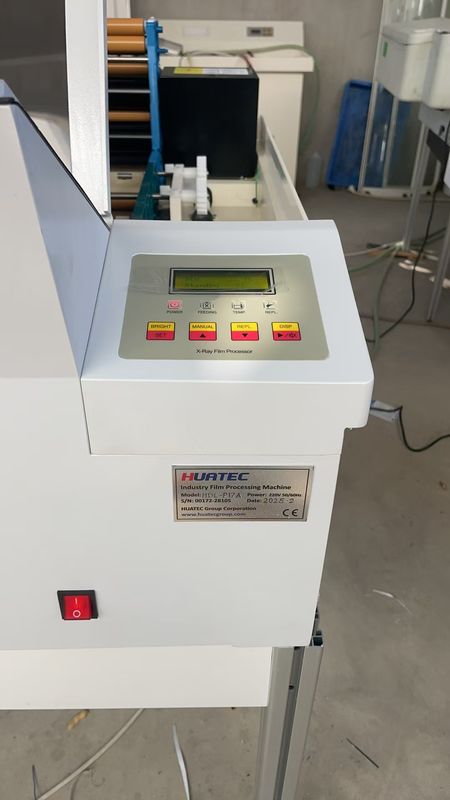

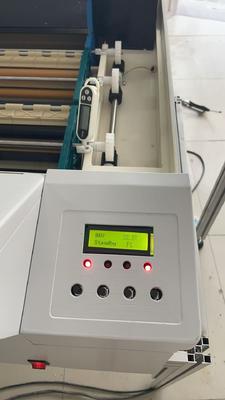

digital display: all set parameters can be read from the operation panel, easy to operate, include wide security; operation panel, can be personalized: running time, flushing temperature and replenishment.

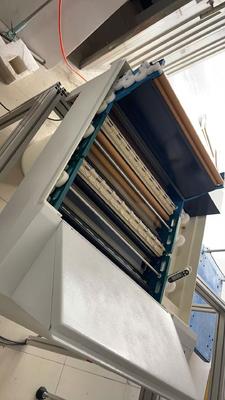

The shaft rack system of L precision roller can protect film transmission and facilitate daily cleaning and maintenance.
drying system adopts special roller combination and electronic control to ensure hot air drying film.
anti crystallization and anti-oxidation program design, continuous circulation of liquid, prevent the aging of liquid, prolong the use time, and get high-quality image.
Standard equipment
1. development synchronous heating system
2. development of independent circulation system
3. development synchronous supplementary system
4. water controlled water saving system of solenoid valve
5. professional conical air duct drying system
6. mechanical sensing feeding system
7. DKM electronic speed control energy saving system
